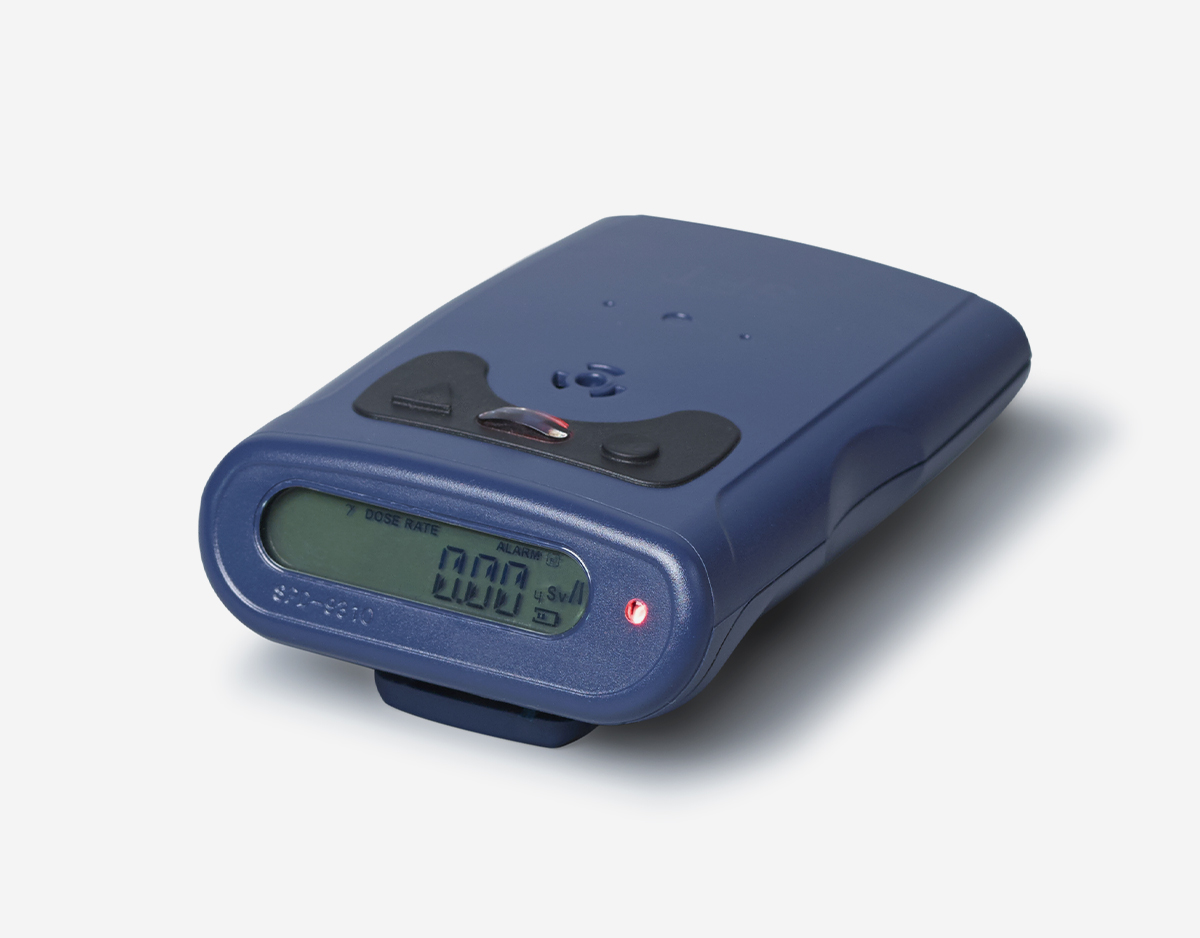

전자식 개인선량계 SPD-9310

Home 방사선/능 계측기 휴대용측정장비 전자식 개인선량계 SPD-9310

원자력 시설, 비파괴 검사(NDT), 병원, 대테러, 산업, 119 구조, 국방, 환경분야 등. SPD-9310은 작업자의 방사선 노출을 최소화하는 방사선 보호의 기본 개념(ALARA)을 적용하여, 방사선 노출을 최소화할 수 있습니다.

Radiological

구분	사양 (IEC61526 (2010))
Detected Radiation	Gamma, x-ray Detector Type : Semiconductor PIN Diode
Display units	dose : Sv or rem (μSv, mSv, Sv, μrem, mrem, rem) dose rate : Sv/h or rem/h (μSv/h, mSv/h, Sv/h, μrem/h, mrem/h, rem/h)
Measurement range	dose : 0.01μSv to 100Sv (0.001mrem to 10000rem) dose rate : 0.05μSv/h to 20Sv/h (0.005mrem/h to 2000rem/h)
Display Resolution	dose : 0.01μSv to 20Sv (0.001mrem to 2000rem) dose rate : 0.01μSv/h to 10Sv/h (0.001mrem/h to 1000rem/h)
Dose rate Linearity Photon Hp(10) (Ref.Cs137)	dose rate : <± 5% (Between 14msv/h and 128msv/h cumulative dose)
Energy Response	X and Gamma Energy range : 16 keV ~ 10 MeV comply with IEC61526
Angular Response	Energy range : 24 keV ~ 10 MeV, 0 to +/-60˚ comply with IEC61526

Electrical Characteristics

구분	사양 (IEC61526 (2010))
Battery	Standard AAA 1.5V Alkaline Autonomy : >1000H battery life in continuous mode (>2months ~ 8hr/day)

Mechanical Characteristics

구분	사양 (IEC61526 (2010))
Alarm	Alarm sounder 85 dB(A) at 30 cm, frequency between 1kHz ~ 5kHz audible, vibration, visible alarm
Size	90 × 61 × 23 mm (without clip)
Weight	92.5g (including battery and clip)
Communication	radio frequency, PS-LTE, BLE, Bluetooth
Case	rugged, drop-resistant Polycarbonate-ABS

Environmental Characteristics
